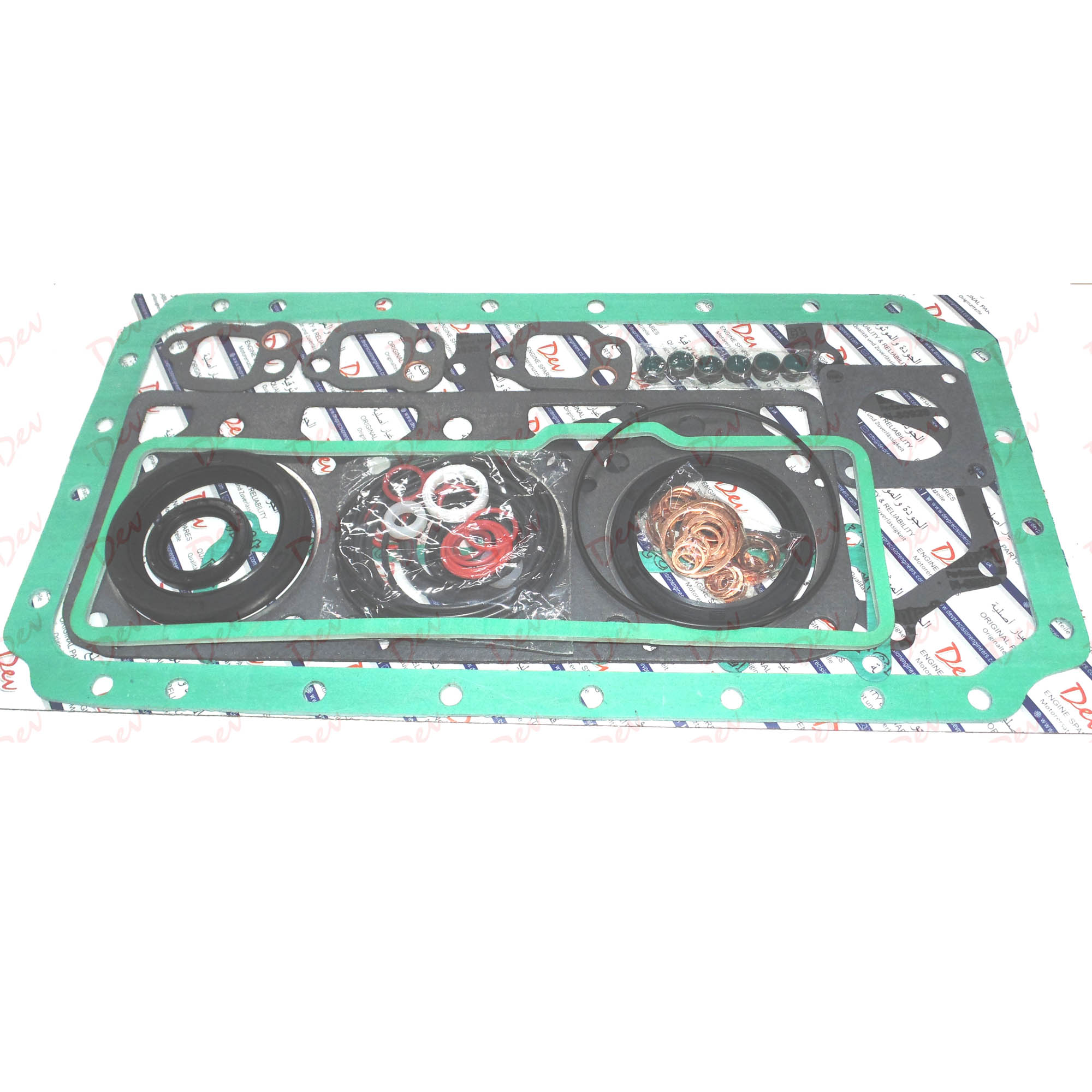

Bukh DV36 DV48 Gasket Set 033D4201
A high quality Gasket Set for BUKH DV36 DV48 3 CYL MARINE DIESEL ENGINE.
DEV PRECISION ENGINEERS – BUKH GASKET SET 033D4201 |
||||
Specification for Complete set of Gaskets for BUKH DV36 and DV48 RME |
||||
| Sr No | Part No | Part Name? | Qty | |
| 1 | 000E4789 | CYLINDER HEAD GASKET | 1 | pcs |
| 2 | 000E4911 | GASKET? for Cover | 1 | pcs |
| 3 | 000E5025 | GASKET for intake manifold | 1 | pcs |
| 4 | 000E5028 | Gasket for Exhaust manifold | 3 | pcs |
| 6 | 000E5234 | GASKET for Cooling Water Pipe | 1 | pcs |
| 7 | 522C3014 | Copper Washer | 1 | pcs |
| 8 | 522C3016 | Copper Washer | 10 | pcs |
| 9 | 522C3020 | Copper Washer | 10 | pcs |
| 10 | 522C3027 | Copper Washer | 2 | pcs |
| 11 | 522C3031 | Copper Washer | 4 | pcs |
| 12 | 522C3033 | Copper Washer | 2 | pcs |
| 13 | 522C3047 | Copper Washer | 3 | pcs |
| 14 | 522C3005 | Copper Washer | 6 | pcs |
| 15 | 522C3080 | Copper Washer | 3 | pcs |
| 16 | 000E5360 | GASKET exhaust outlet DV36/48 | 1 | pcs |
| 17 | 000E4817 | GASKET F.FRONT END COVER | 1 | pcs |
| 18 | 000E4783 | GASKET F.OIL SUMP | 1 | pcs |
| 20 | 000E5099 | GASKET FOR CHAIN CASE | 1 | pcs |
| 21 | 000E4784 | GASKET FOR LIFT PUMP | 1 | pcs |
| 22 | 000E5235 | GASKET FOR THERMOSTAT | 1 | pcs |
| 23 | 560B0016 | O-RING | 1 | pcs |
| 24 | 560F0009 | O-RING | 1 | pcs |
| 25 | 560F1032 | O-RING | 1 | pcs |
| 26 | 560F0013 | O-RING | 3 | pcs |
| 27 | 560F0017 | O-RING | 3 | pcs |
| 28 | 560F0020 | O-RING | 2 | pcs |
| 29 | 560F0021 | O-RING | 3 | pcs |
| 30 | 560K0027 | O-RING | 2 | pcs |
| 31 | 560F1022 | O-RING | 1 | pcs |
| 32 | 560K0044 | O-RING | 1 | pcs |
| 33 | 560B1008 | O-RING | 1 | pcs |
| 34 | 560K0079 | O-RING | 3 | pcs |
| 35 | 560K0124 | O-RING | 1 | pcs |
| 36 | 560K1094 | O-RING | 6 | pcs |
| 37 | 560K1069 | O-RING | 1 | pcs |
| 38 | 561B0750 | Oil Seal | 1 | pcs |
| 39 | 561B0706 | Oil Seal | 1 | pcs |
| 40 | 561B0356 | Oil Seal | 1 | pcs |
| 41 | 562J0000 | SEAL FOR VALVE | 6 | pcs |
| 42 | 000E4808 | THRUST COLLAR | 1 | pcs |
| 43 | 000E3225 | THRUST COLLAR FOR SHAFT | 2 | pcs |
Doesnt include 000E5047 Head Lifting and 000E4816 REAR END COVER Gaskets
