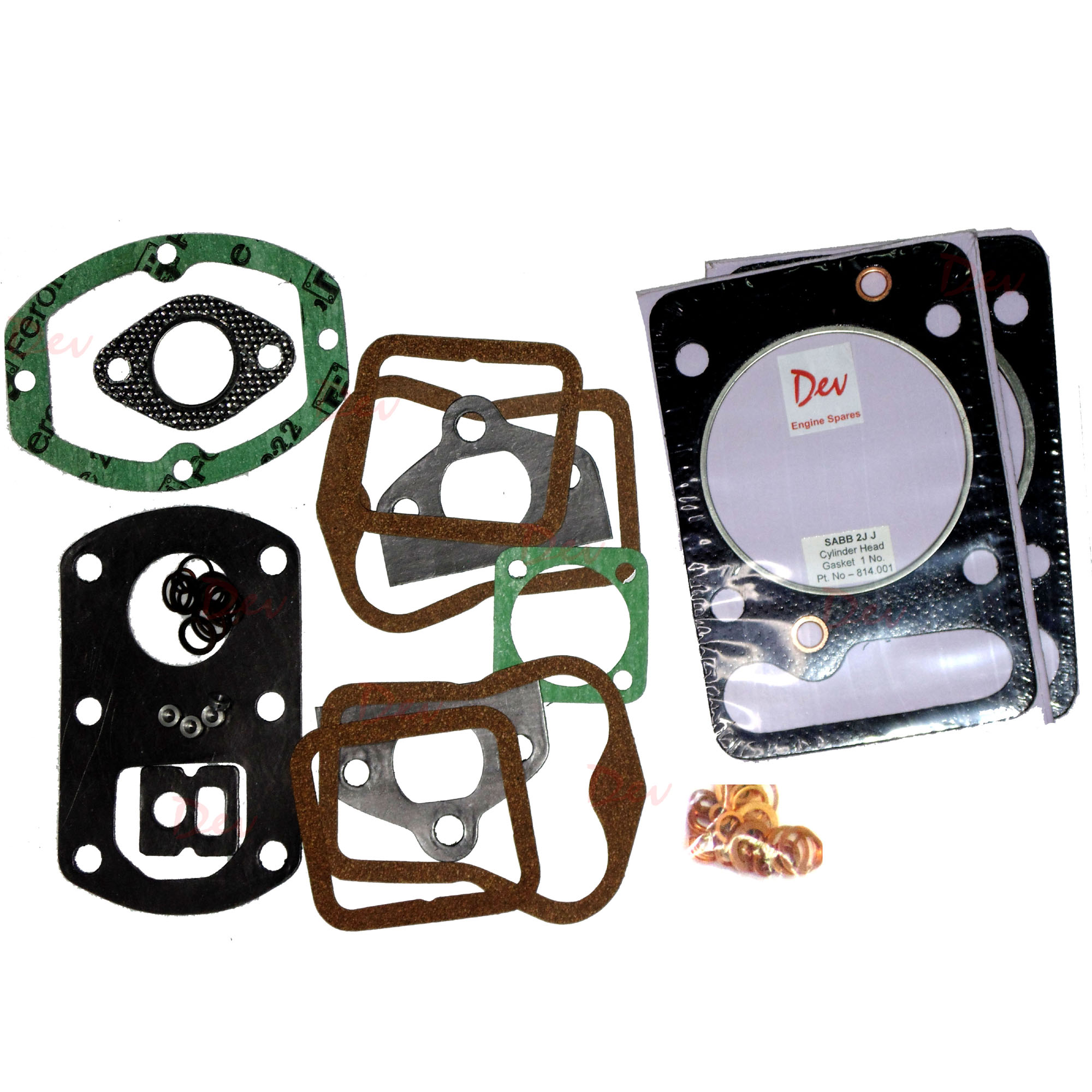

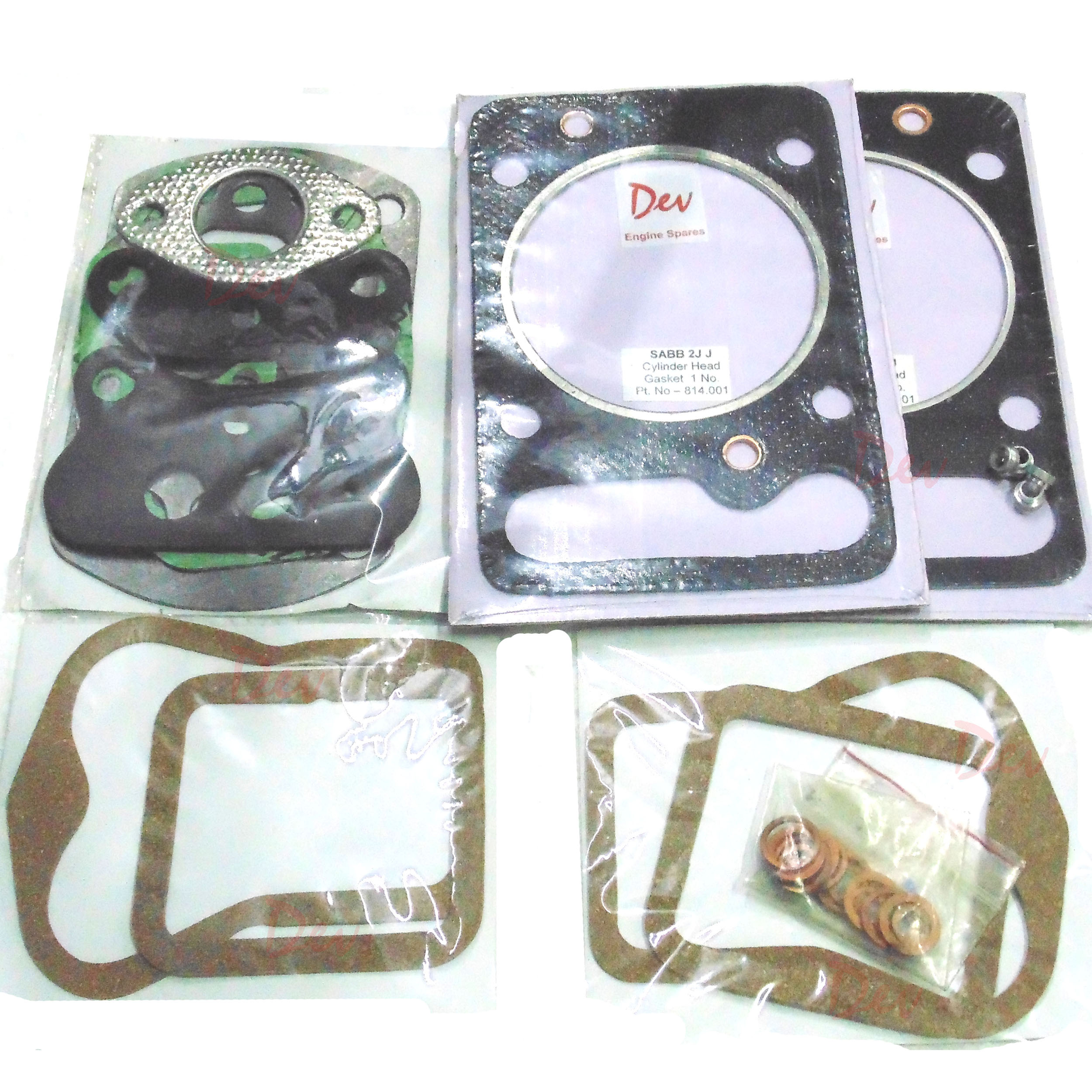

SABB 2J 2JZ P12 Maintenance Gasket Set Art No: 003399.
SABB J Series 100mm bore marine diesel engine set includes :
| Stk. | Del
navn |
Part
Name |
Art. nr. |
| Pos. | Art No. | ||
| 2 | Topphettepakning | Cylinder head cover gasket | 815001 |
| 2 | TOppvarnpakaiag | Cylinder Head or Water Gasket | 814001 |
| 2 | Luftmanifoldpakning | Inlet Manifold Gasket | 815002 |
| 1 | Regulatorluke-pakning | Governor cover gasket. | 813053 |
| 1 | Vannventilpakning | Gasket, water valve housing | 814015 |
| 1 | Lyddemperlokk-pakning | Front cover gasket. | 814024 |
| 1 | Termostatpakning | Thermostat??gasket | 813078 |
| 2 | Eksosvannpakning | Exhaust water gasket . | 814036 |
| 1 | Eksosflenspakning | Exhaust flange gasket | 814035 |
| 4 | Pakningsring | Copper washer 8 mm. | 831025 |
| 4 | Pakningsring | Copper washer 12mm | 831018 |
| 6 | Pakningsring | Copper washer 14 mm | 831035 |
| Farside | Front cover | 97721 |
Set does not include Alluminium flange washer.
