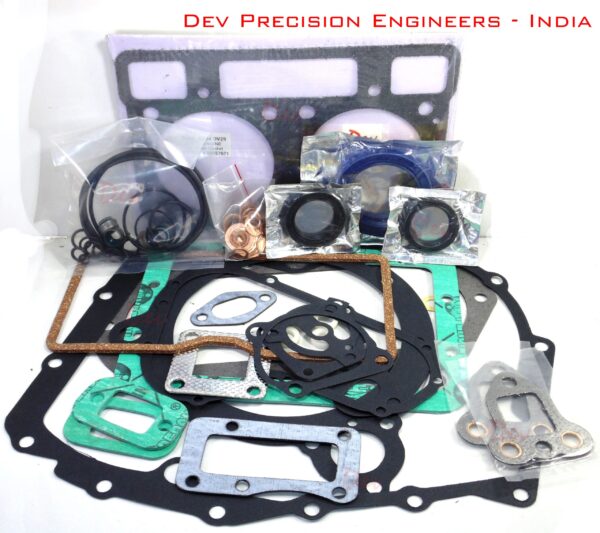

DEV PRECISION ENGINEERS – BUKH GASKET SET 032D4215
Specification for Complete set of Gaskets no. 032D4215 for DV 24/29/32 RME |
|||
| SR No | Part No. | Quantity | Item |
| 1 | 000E2462 | 1 | Gasket for water inlet |
| 2 | 000E2584 | 1 | Gasket for thermostat |
| 3 | 000E3225 | 4 | Thrust collar for shaft |
| 4 | 000E4784 | 1 | Gasket for lift pump |
| 5 | 000E7425 | 1 | Gasket for Lub.oil pump cover |
| 6 | 000E7668 | 1 | Gasket for valve cover |
| 7 | 000E7671 | 1 | Gasket for cylinder head |
| 8 | 000E9069 | 1 | Gasket for oil pump |
| 9 | 000D9196 | 1 | Gasket for front end cover |
| 10 | 000D9197 | 1 | Gasket for rear end cover |
| 11 | 000D9312 | 2 | Gasket for cover for regulating of fuel cam |
| 12 | 000D9643 | 1 | Gasket for governor cover |
| 13 | 000D9734 | 1 | Gasket for base cover |
| 14 | 000D9762 | 1 | Gasket for exhaust |
| 15 | 000D9881 | 2 | Gasket for watercooled exhaust pipe |
| 16 | 000E0053 | 1 | Gasket for chain case |
| 17 | 000E0054 | 1 | Gasket for chain case |
| 18 | 000E0055 | 1 | Gasket for raised handstart |
| 19 | 000E0975 | 1 | Gasket for cover for rotating weights |
| 20 | 522C3005 | 6 | Gasket – Copper |
| 21 | 522C3008 | 2 | Gasket – Copper |
| 22 | 522C3012 | 6 | Gasket – Copper |
| 23 | 522C3014 | 2 | Gasket – Copper |
| 24 | 522C3016 | 6 | Gasket – Copper |
| 25 | 522C3020 | 3 | Gasket – Copper |
| 26 | 522C3021 | 5 | Gasket – Copper |
| 27 | 522C3025 | 1 | Gasket – Copper |
| 28 | 522C3027 | 1 | Gasket – Copper |
| 29 | 522C3033 | 1 | Gasket – Copper |
| 30 | 522C3082 | 2 | Gasket – Copper |
| 31 | 560B1017 | 1 | O-ring |
| 32 | 560B1032 | 1 | O-ring |
| 33 | 560D0006 | 1 | O-ring |
| 34 | 560D0025 | 1 | O-ring |
| 35 | 560F0009 | 1 | O-ring |
| 36 | 560F0011 | 2 | O-ring |
| 37 | 560F0013 | 5 | O-ring |
| 38 | 560H0048 | 1 | O-ring |
| 39 | 560M1091 | 4 | O-ring |
| 40 | 561B0350 | 1 | Oil seal ring |
| 41 | 561B0356 | 1 | Oil seal ring |
| 42 | 561B0595 | 1 | Oil seal ring |
| 43 | 562J0000 | 4 | Valve seal |
